Floor Plans

Filter

Tourism of Tomorrow 1 Bed

Tourism of Tomorrow 1 Bed

INTERNAL: 40 m²

DECK: 12 m²

TOTAL: 52 m²

Fingerlime 1 Bed

Fingerlime 1 Bed

INTERNAL: 37 m²

DECK: 9 m²

TOTAL: 46 m²

Banksia 1 Bed

Banksia 1 Bed

INTERNAL: 45 m²

DECK: 13 m²

TOTAL: 58 m²

Banksia 2 Bed

Banksia 2 Bed

INTERNAL: 58 m²

DECK: 22 m²

TOTAL: 80 m²

Wattle 1 Bed

Wattle 1 Bed

INTERNAL: 61 m²

DECK: 12 m²

TOTAL: 73 m²

Wattle 2 Bed

Wattle 2 Bed

INTERNAL: 95 m²

DECK: 14 m²

TOTAL: 109 m²

Grevillea 2 Bed

Grevillea 2 Bed

INTERNAL: 67 m²

DECK: 18 m²

TOTAL: 85 m²

MK22

MK22

INTERNAL: 22 m²

DECK: 0 m²

TOTAL: 22 m²

MK31

MK31

INTERNAL: 31 m²

DECK: 0 m²

TOTAL: 31 m²

MK40

MK40

INTERNAL: 40 m²

DECK: 0 m²

TOTAL: 40 m²

MK41

MK41

INTERNAL: 41 m²

DECK: 0 m²

TOTAL: 41 m²

MK53

MK53

INTERNAL: 53 m²

DECK: 0 m²

TOTAL: 53 m²

MK62

MK62

INTERNAL: 62 m²

DECK: 5 m²

TOTAL: 62 m²

MK72

MK72

INTERNAL: 72 m²

DECK: 5 m²

TOTAL: 72 m²

MK132

MK132

INTERNAL: 132 m²

DECK: 0 m²

TOTAL: 132 m²

M31-3 LINE BED

M31-3 LINE BED

INTERNAL: 31 m²

DECK: 0 m²

TOTAL: 31 m²

M31-2 LINE BED

M31-2 LINE BED

INTERNAL: 31 m²

DECK: 0 m²

TOTAL: 31 m²

MK31- 2 Bed 1 Bath

MK31- 2 Bed 1 Bath

INTERNAL: 31 m²

DECK: 0 m²

TOTAL: 31 m²

MK31-2 Bed 2 Bath

MK31-2 Bed 2 Bath

INTERNAL: 31 m²

DECK: 0 m²

TOTAL: 31 m²

MK41- 2 Bed 2 Bath

MK41- 2 Bed 2 Bath

INTERNAL: 41 m²

DECK: 0 m²

TOTAL: 41 m²

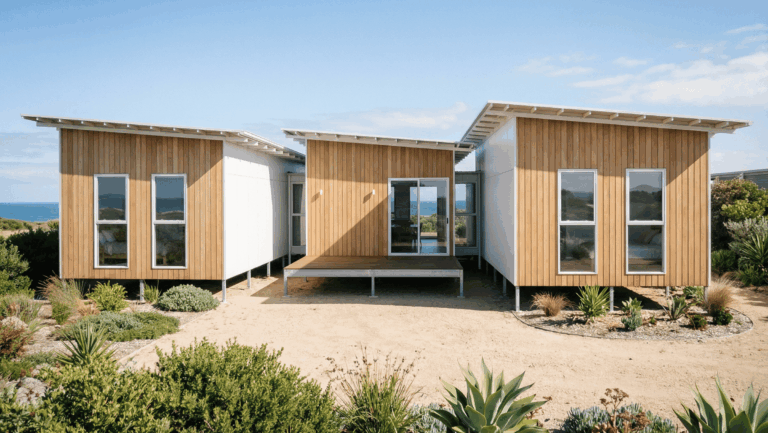

4 Bed x 3 Bath (152m² Vertical)

4 Bed x 3 Bath (152m² Vertical)

INTERNAL: 152 m²

DECK: 22 m²

TOTAL: 152 m²

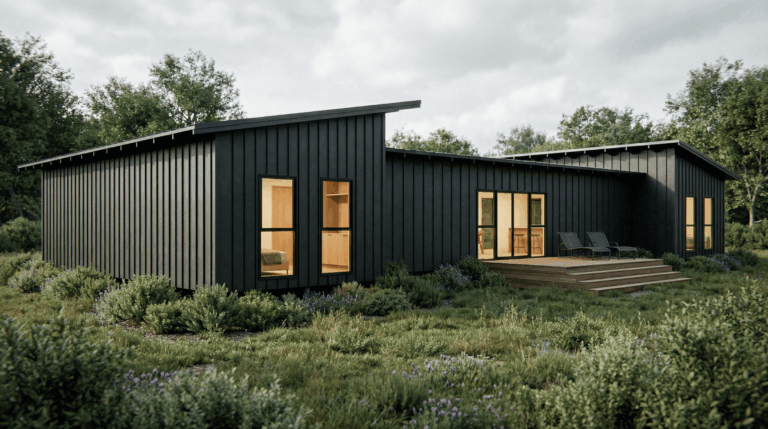

4 Bed x 3 Bath (152m² Horizontal)

4 Bed x 3 Bath (152m² Horizontal)

INTERNAL: 152 m²

DECK: 30 m²

TOTAL: 152 m²

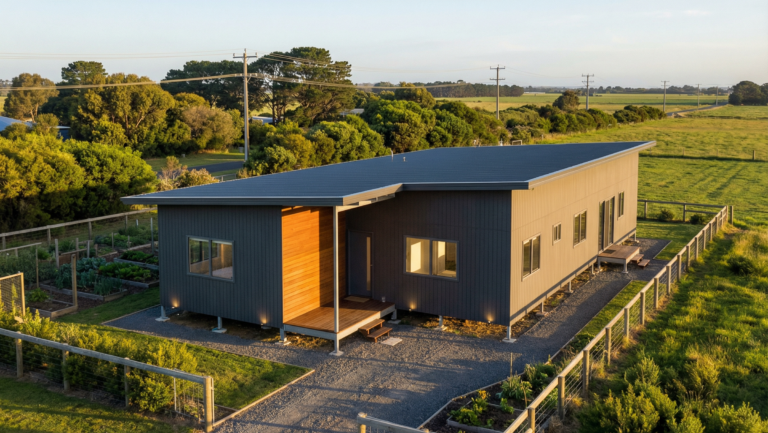

GROH HOUSING – 4 Bed x 2 Bath

GROH HOUSING – 4 Bed x 2 Bath

INTERNAL: 164 m²

DECK: m²

TOTAL: 174 m²

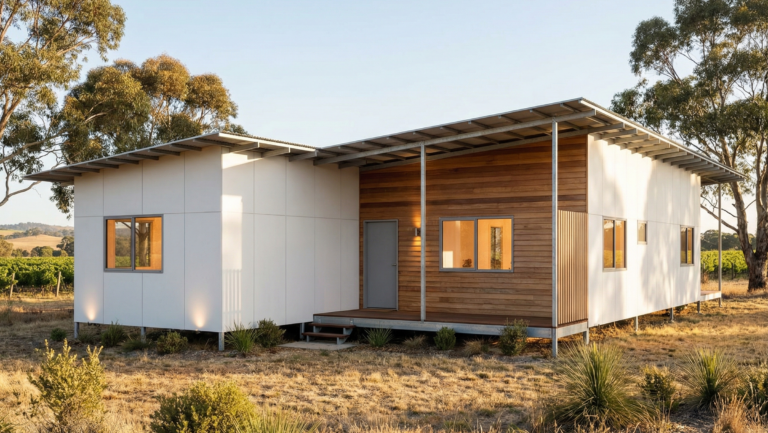

GROH HOUSING – 3 Bed x 2  Bath

GROH HOUSING – 3 Bed x 2 Bath

INTERNAL: 135 m²

DECK: m²

TOTAL: 144 m²

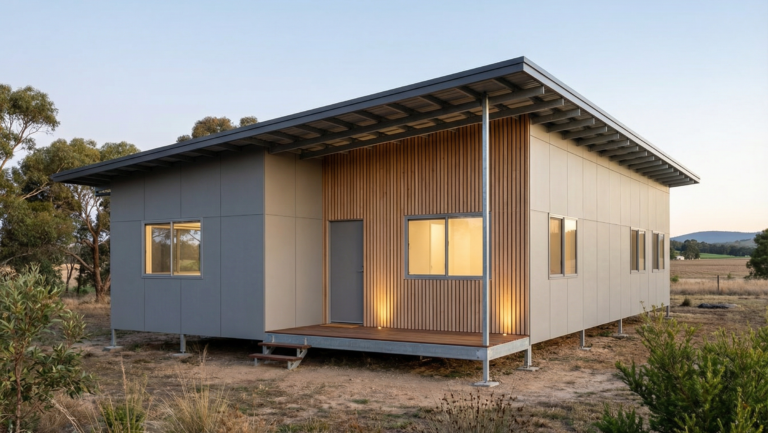

GROH HOUSING – 2 Bed x 2 Bath

GROH HOUSING – 2 Bed x 2 Bath

INTERNAL: 91 m²

DECK: m²

TOTAL: 97 m²

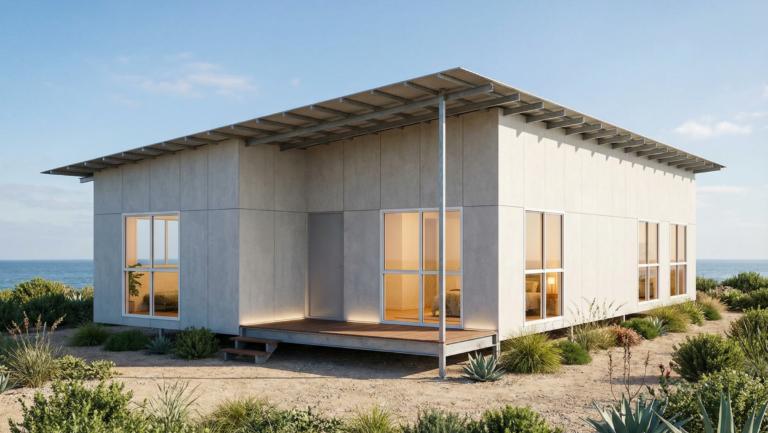

GROH HOUSING – 2 Bed x 1 Bath

GROH HOUSING – 2 Bed x 1 Bath

INTERNAL: 86 m²

DECK: m²

TOTAL: 95 m²

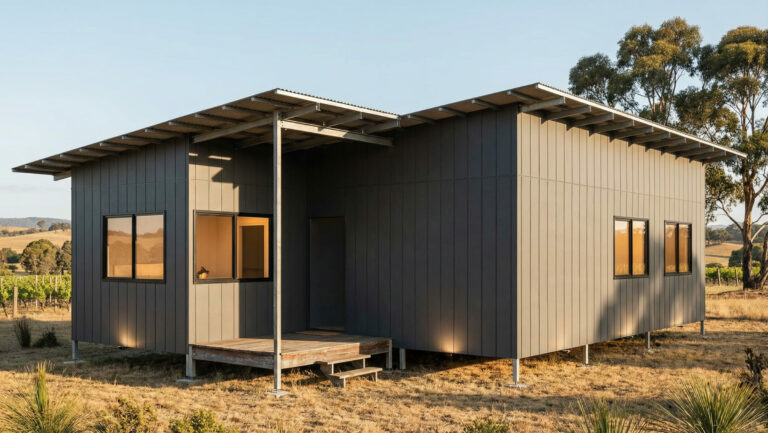

GROH HOUSING – 1 Bed x 1 Bath

GROH HOUSING – 1 Bed x 1 Bath

INTERNAL: 64 m²

DECK: m²

TOTAL: 69 m²

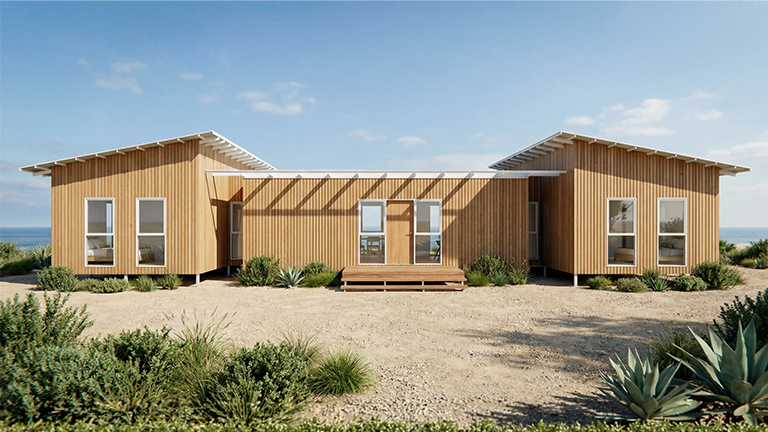

3 Bed x 3 Bath (106m² Horizontal)

3 Bed x 3 Bath (106m² Horizontal)

INTERNAL: 106 m²

DECK: 12 m²

TOTAL: 106 m²

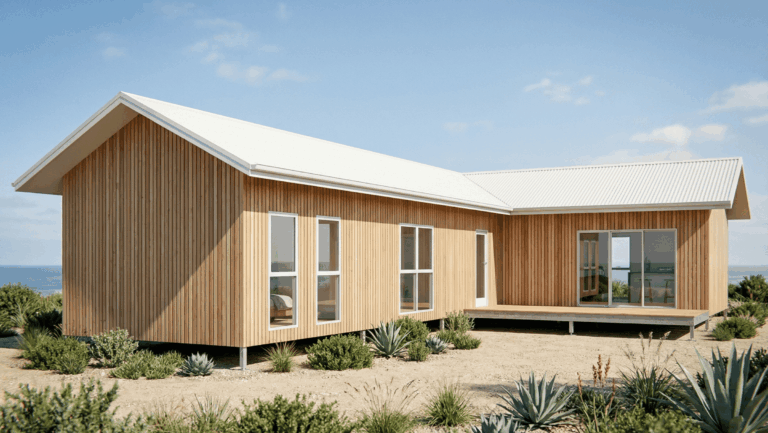

3 Bed x 2 Bath (140m²)

3 Bed x 2 Bath (140m²)

INTERNAL: 140 m²

DECK: 32 m²

TOTAL: 140 m²

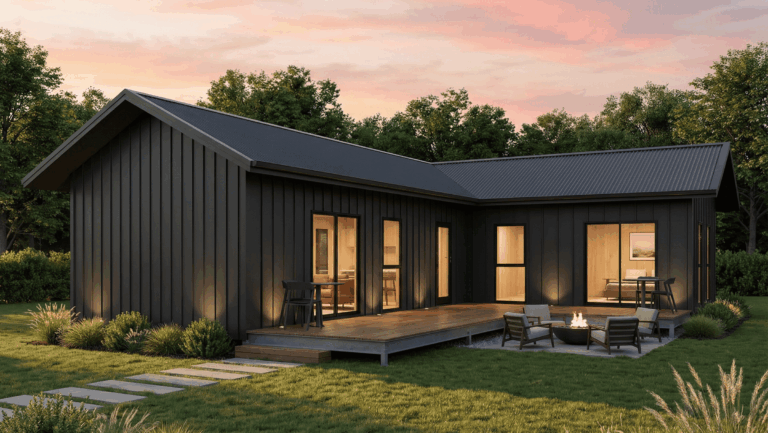

2 Bed x 2 Bath (106m²)

2 Bed x 2 Bath (106m²)

INTERNAL: 106 m²

DECK: 12 m²

TOTAL: 106 m²

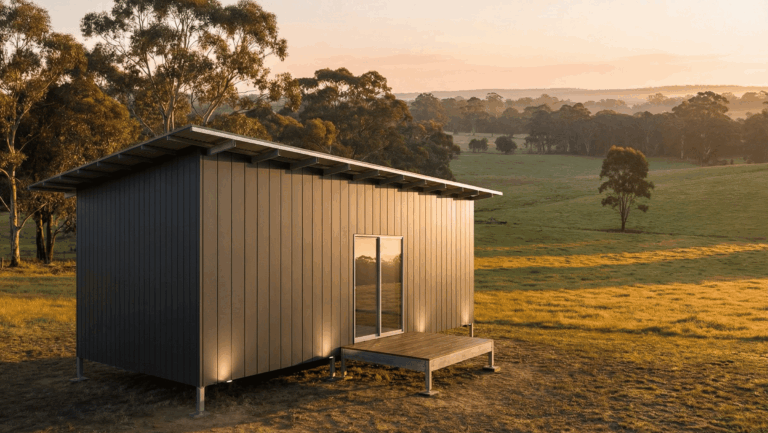

F31-Gym

F31-Gym

INTERNAL: 31 m²

DECK: 0 m²

TOTAL: 31 m²

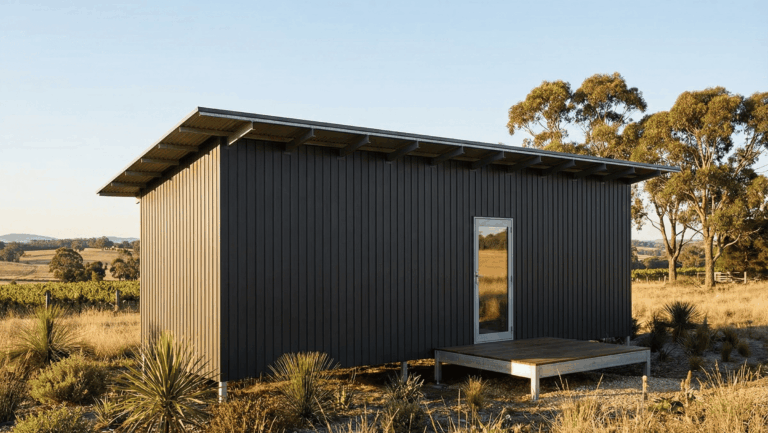

F31-Cool Room

F31-Cool Room

INTERNAL: 31 m²

DECK: 0 m²

TOTAL: 31 m²

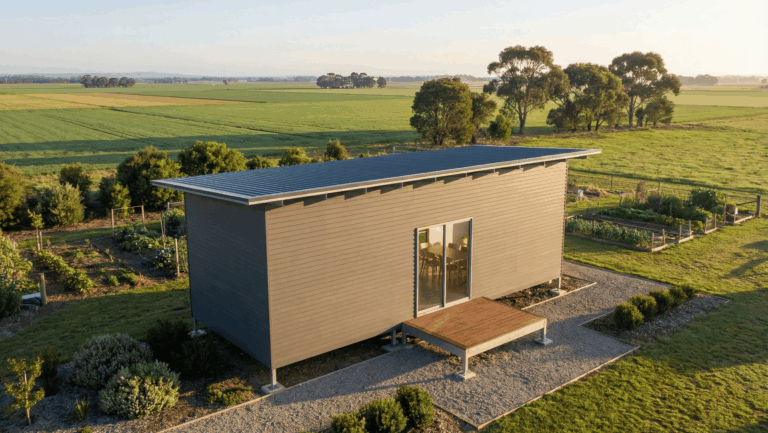

F31-Staff Canteen

F31-Staff Canteen

INTERNAL: 31 m²

DECK: 0 m²

TOTAL: 31 m²

F31-Office

F31-Office

INTERNAL: 31 m²

DECK: 0 m²

TOTAL: 31 m²

F31-Kitchen

F31-Kitchen

INTERNAL: 31 m²

DECK: 0 m²

TOTAL: 31 m²

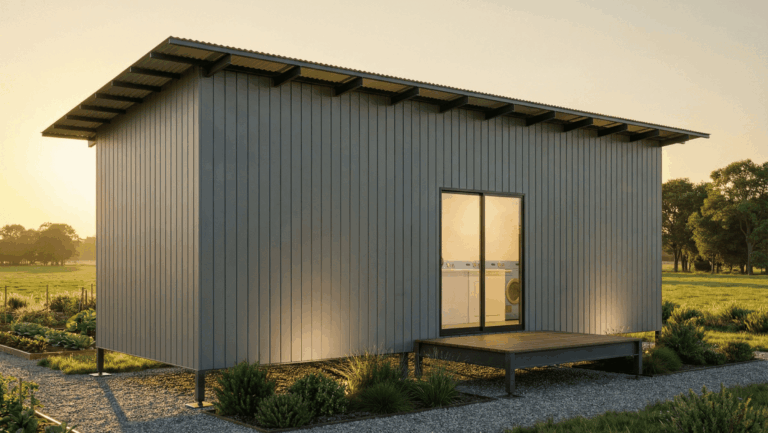

F31-Laundry

F31-Laundry

INTERNAL: 31 m²

DECK: 0 m²

TOTAL: 31 m²

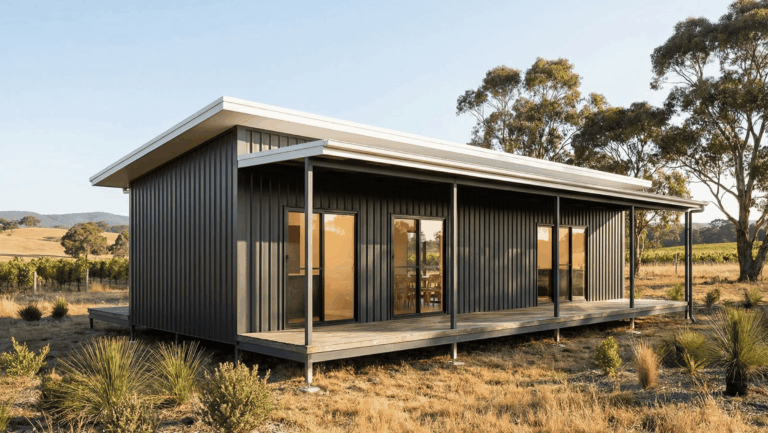

F26-Camp Kitchen

F26-Camp Kitchen

INTERNAL: 62 m²

DECK: 0 m²

TOTAL: 62 m²

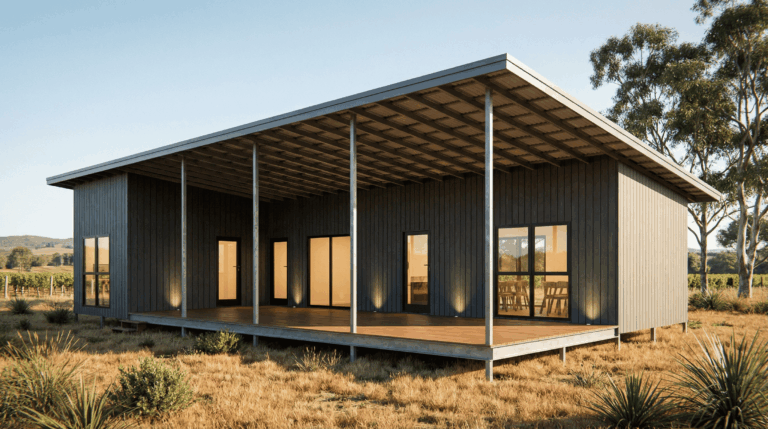

F80-Range Control

F80-Range Control

INTERNAL: 106 m²

DECK: 0 m²

TOTAL: 106 m²

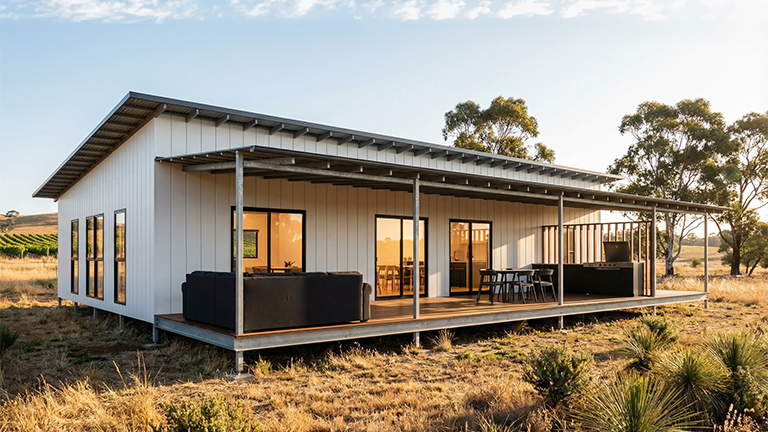

F143-Mess Hall

F143-Mess Hall

INTERNAL: 143 m²

DECK: 0 m²

TOTAL: 143 m²
